High Altitude

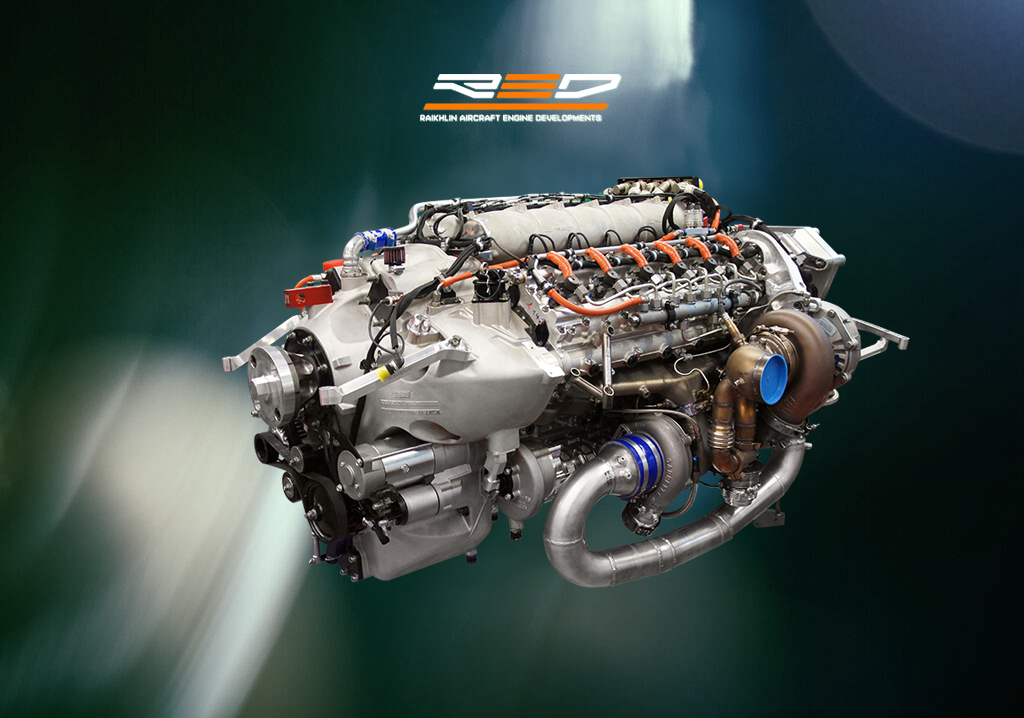

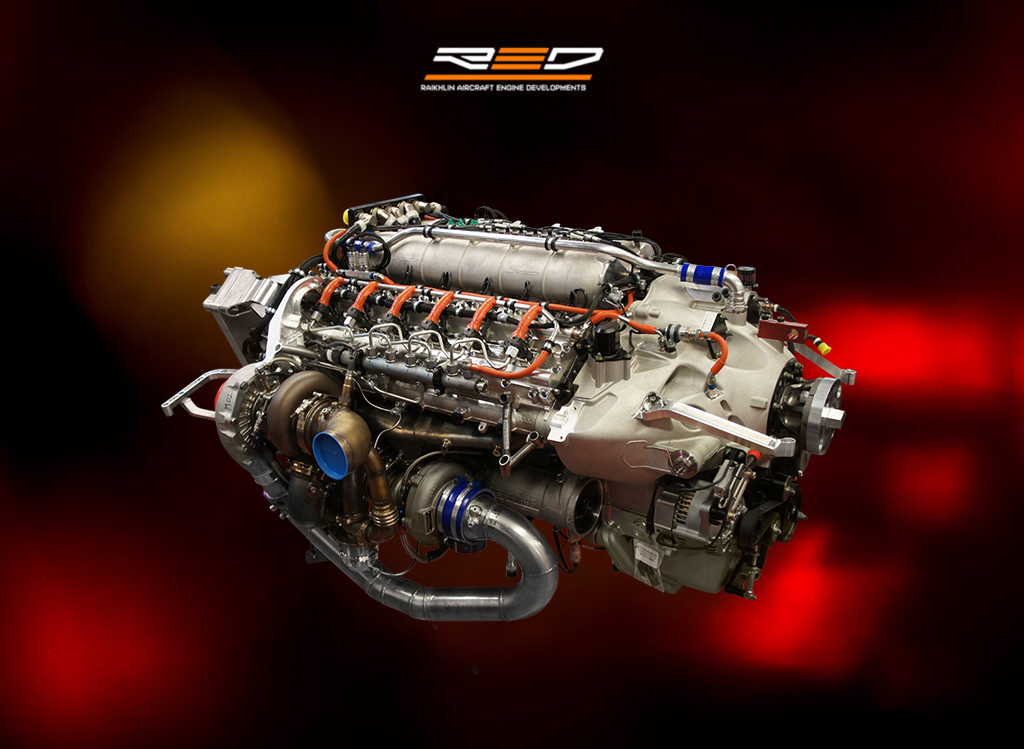

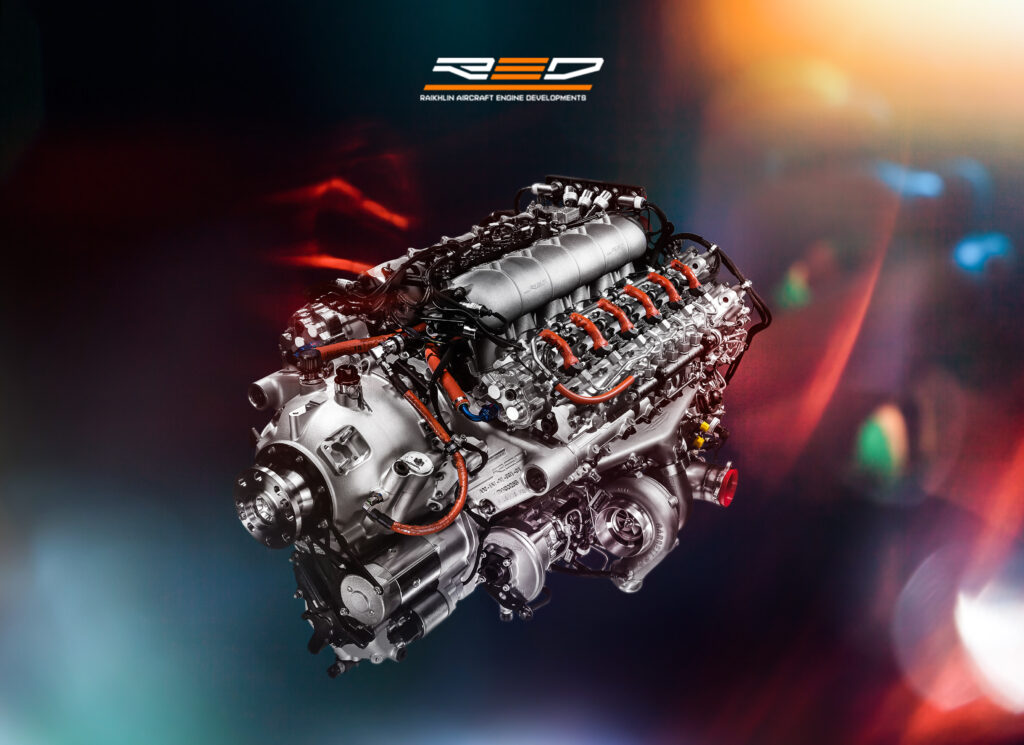

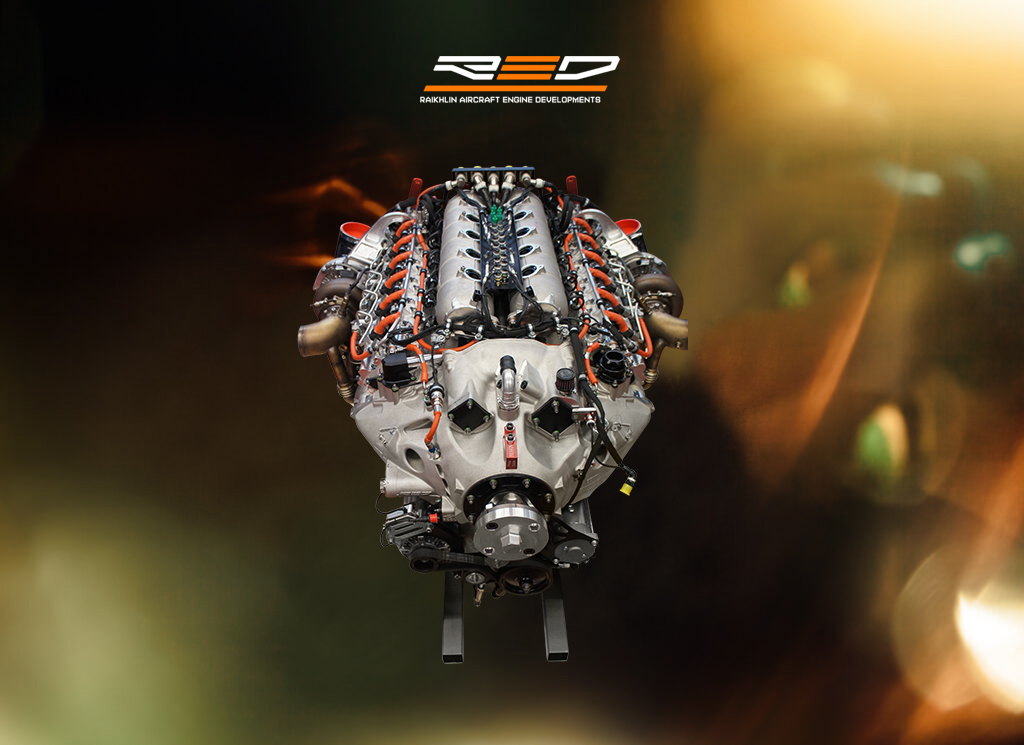

RED A03– 201 (500/550 HP)
The RED A03-200 series is a derivative of the proven RED A03-003 engine model, developed for very high-altitude operation. This variant can be combined with the 500 and 550 hp power versions.
The 200-Series is equipped with the NORMAL category gearbox as the complexity of the aerobatic oil distribution is rather uncommon in high altitudes.
All types of General Aviation (GA) aircraft, as
- Commuter
- Utility
- Agricultural & more
- Developed for very high altitude operation
- up to 15 km – FL500
- MCP rating – 460 SHP at FL250
- High altitude restart capability
- Digital FADEC for unmanned operation
- Dry-sump oil system.
- Integrated engine oil and gearbox oil tank.
- Integrated engine oil and gearbox oil heat exchanger.
- Designed for lean maintenance.
- FADEC & electric looms
- Engine starter
- Engine and gearbox oil subsystem, incl. oil tank and heat exchanger
- Exhaust system and turbochargers
- Optional: propeller governor, engine display, fuel supply system,
alternators & more
| ENGINE DESCRIPTION | |
| NUMBER OF CYL. + ARRANGEMENT |
V-12 |
| FUEL TYPE | JET FUEL |
| DISPLACEMENT | 4 |
| BORE X STROKE | 3.38” X 3.46” |
| VALVES PER CYLINDER | 4 |
| TURBOCHARGER | TWO STAGE |
| FUEL SYSTEM | COMMON RAIL |
| ELECTRICAL SYSTEM | 2 X 28 V 3.5 KW ALTERNATOR |
| REDUCTION GEAR | 1:1.88 |
| DRY MASS* | 893 LBS |
| FADEC | DESIGN ASSURANCE LEVEL B CERTIFIED IN COMPLIANCE TO RTCA DO-254, DO-178B & DO-160G |
| DIMENSIONS | 33.46 x 29.53 x 43.86 inch ( Width x Height x Length ) |
*According to type design configuration.
PERFORMANCE & RATINGS
| TAKEOFF POWER | 500 SHP(2) |
| TAKEOFF PROPELLER SPEED | 2127 RPM |
| MAXIMUM CONTINUOUS POWER |
460 SHP |
| MAXIMUM CONTINUOUS SPEED | 1995 RPM |
| CRITICAL ALTITUDE | 7620 FT |
| BSFC (BEST) | 0.349 LBS/H/SHP |
| FUEL FLOW: | |
| AT TAKEOFF AT MCP AT 400 HP AT 300 HP |
187 LBS/H 169 LBS/H 143 LBS/H 103 LBS/H |
